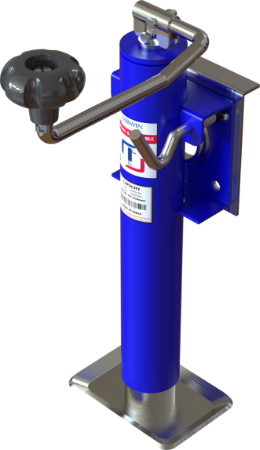

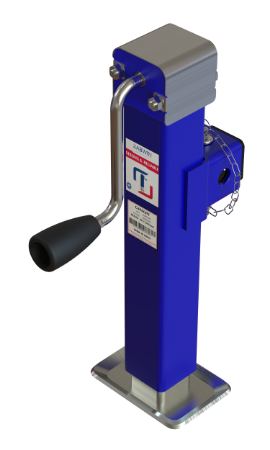

Jack SM 1360 High lift
SSSWF310A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Side wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 5,000 LBS. |
| Lift Capacity | 3,000 LBS. |
| Lift | 10.5 IN. |
| Retracted Height | 10.3 IN. |
| Extended Height | 20.8 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 1360 High Lift SSSWF310A is designed to provide high lift of 10.5 inch, making it easy to attach and detach trailers from your vehicle.
5000lb load capacity: This trailer jack is designed to support a maximum load of 5000 lbs, making it ideal for heavy- duty applications.
Powder Coating: The trailer jack features an outer tube with blue colour powder coating and inner tube with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 1360 High Lift SSSWF310A is made with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety. Superior side-load capacity compared with round jacks. Outer and inner tubes overlap for additional strength when jack is fully extended. Square design provides additional support for side loading. Side wind handle with grip has smooth, ergonomic design for easy handling
ACCESSORIES
Flange bushing

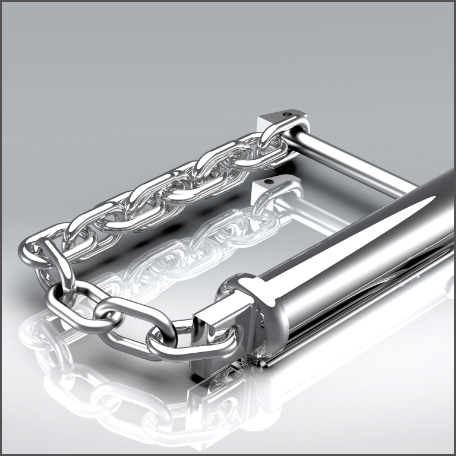

Jack pin assembly
M6 Grease nipple

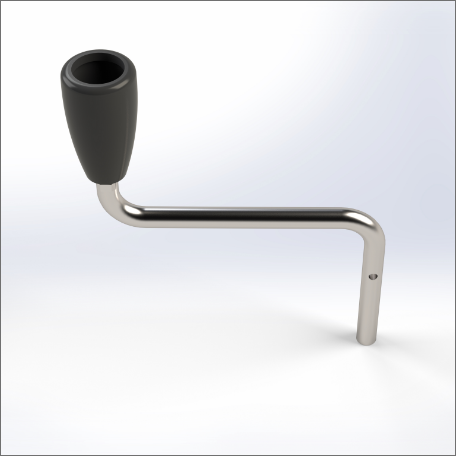

Side wind handle rod assembly

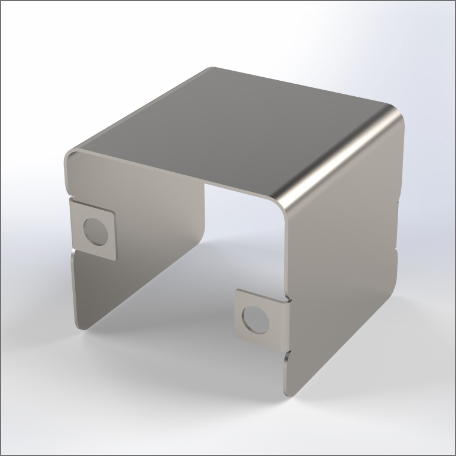

Square top cover

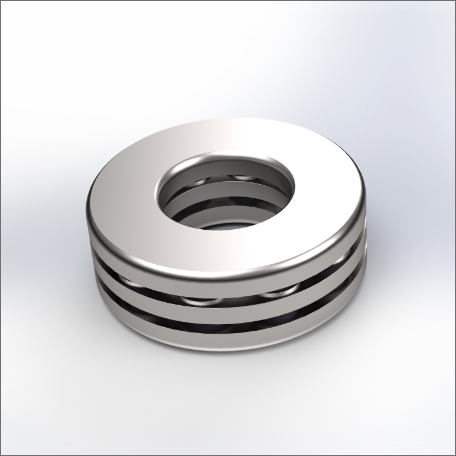

Thrust ball bearing
Weld-on tube

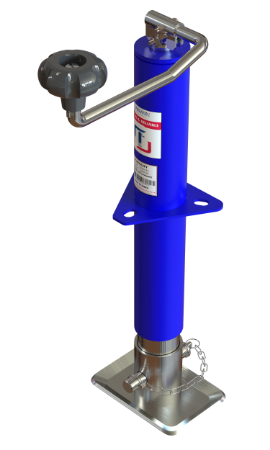

Jack SM 908 High lift
RSTWS315A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Top wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 5,000 LBS. |
| Lift Capacity | 3,000 LBS. |
| Lift | 15 IN. |
| Retracted Height | 14.5 IN. |
| Extended Height | 29.5 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 1360 High lift RSTWS315A is designed to provide high lift of 15 inch, making it easy to attach and detach trailers from your vehicle.
5000lb load capacity: This trailer jack is designed to support a maximum load of 5000 lbs, making it ideal for heavy-duty applications.
Swivel Type : This jack can be used in vertical condition to lift the load and also can be swivelled to keep it horizontal when not in use.
Powder Coating: The trailer jack features a outer pipe with blue colour powder coating and inner pipe with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 1360 High lift RSTWS315A is made with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior side-load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended.
Top wind handle with grip has smooth, ergonomic design for easy handling.
ACCESSORIES
Flange bushing
Jack pin assembly
M6 Grease nipple
Side wind handle rod assembly
Square top cover
Thrust ball bearing

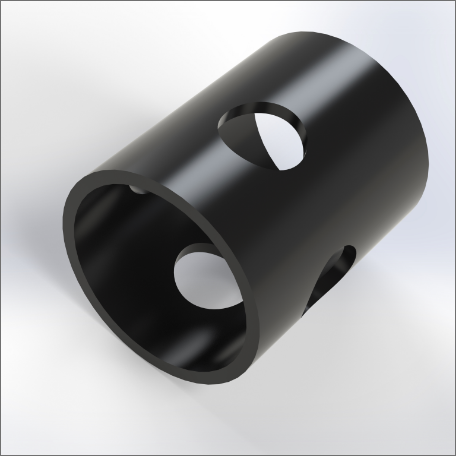

Weld-on pipe
Jack SM 908 High lift
RSTWS310A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Top wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 5,000 LBS. |
| Lift Capacity | 3,000 LBS. |
| Lift | 10 IN. |
| Retracted Height | 11.25 IN. |
| Extended Height | 21.25 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 1360 High lift RSTWS310A is designed to provide high lift of 10 inch, making it easy to attach and detach trailers from your vehicle.
5000lb load capacity: This trailer jack is designed to support a maximum load of 5000 lbs, making it ideal for heavy- duty applications.
Swivel Type : This jack can be used in vertical condition to lift the load and also can be swivelled to keep it horizontal when not in use.
Powder Coating: The trailer jack features an outer pipe with blue colour powder coating and inner pipe with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 1360 High lift RSTWS310A is made with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior side-load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended.
Top wind handle with grip has smooth, ergonomic design for easy handling.
ACCESSORIES
Flange bushing

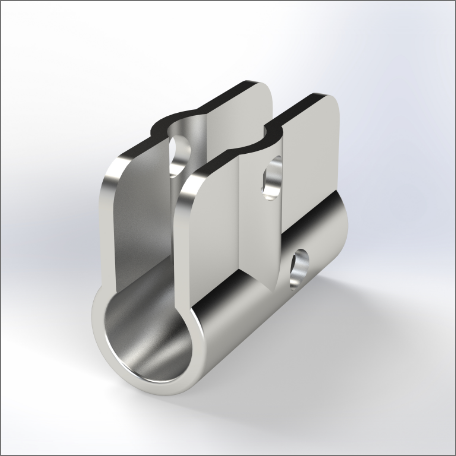

Handle coupling
Jack pin assembly
Thrust ball bearing

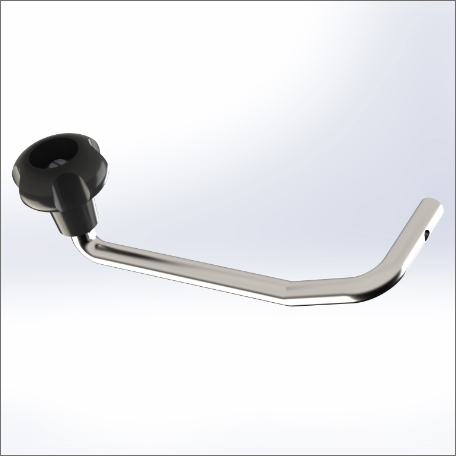

Top wind handle rod assembly
Weld-on pipe
Weld-on tube

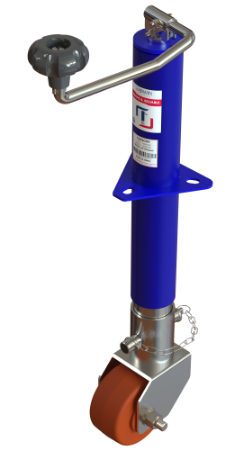

Jack TM 908 High lift
RTTBFR210A RETRACTED CONDITION ISO
| Additional information | |
|---|---|
| Winding Type | Top wind |
| Mounting Type | Bolt-on |
| Mounting Position | Top mount |
| Static Capacity | 3,000 LBS. |
| Lift Capacity | 2,000 LBS. |
| Lift | 10 IN. |
| Retracted Height | 15 IN. |
| Extended Height | 25 IN. |
| Foot Type | Roller |
Features & Benefits
Jack TM 908 High lift RTTBFR210A is designed to provide high lift of 10 inch, making it easy to attach and detach trailers from your vehicle.
3000lb load capacity: This trailer jack is designed to support a maximum load of 3000 lbs, making it ideal for heavy-duty applications.
Powder Coating: The trailer jack features an outer tube with blue colour powder coating and inner tube with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack TM 908 High lift RTTBFR210A is made
with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
4 inch Roller : Fitted with durable 4 inch roller , trailer can be moved to the towing point. It is designed for even load distribution and its 2 inch width provides high stability and high safety.
Superior load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended.
Top wind handle with grip has smooth, ergonomic design for easy handling.
ACCESSORIES
Flange bushing
Handle coupling

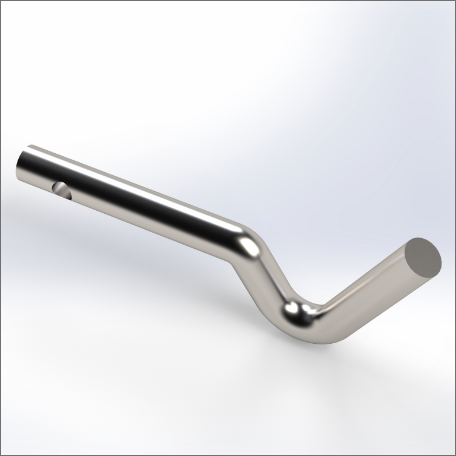

Handle hook
Thrust ball bearing
Top wind handle rod assembly
Weld-on plate
Jack TM 908 High lift
RTTBFF210A ISO RETRACTED CONDITION
| Additional information | |
|---|---|
| Winding Type | Top wind |
| Mounting Type | Bolt-on |
| Mounting Position | Top mount |
| Static Capacity | 3,000 LBS. |
| Lift Capacity | 2,000 LBS. |
| Lift | 10 IN. |
| Retracted Height | 11 IN. |
| Extended Height | 21 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack TM 908 High lift RTTBFF210A is designed to provide high lift of 10 inch, making it easy to attach and detach trailers from your vehicle
3000lb load capacity: This trailer jack is designed to support a maximum load of 3000 lbs, making it ideal for heavy- duty applications.
Powder Coating: The trailer jack features an outer tube with blue colour powder coating and inner tube with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack TM 908 High lift RTTBFF210A is made with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended
Top wind handle with grip has smooth, ergonomic design for easy handling
ACCESSORIES
Flange bushing
Handle coupling
Handle hook
Thrust ball bearing
Top wind handle rod assembly
Weld-on plate

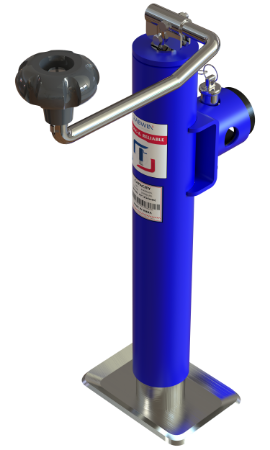

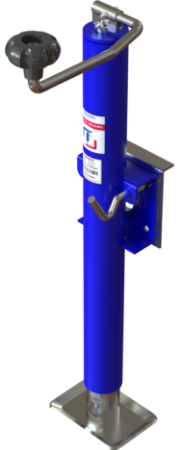

Jack SM 908 High lift
RSTWF210A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Top wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 3,000 LBS. |
| Lift Capacity | 2,000 LBS. |
| Lift | 10 IN. |
| Retracted Height | 11 IN. |
| Extended Height | 21 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 908 High lift RSTWF210A is designed to provide high lift of 10 inch, making it easy to attach and detach trailers from your vehicle
3000lb load capacity: This trailer jack is designed to support a maximum load of 3000 lbs, making it ideal for heavy-duty applications.
Powder Coating: The trailer jack features an outer pipe with blue colour powder coating and inner pipe with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 908 High lift RSTWF210A is made with highquality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior side-load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended
Top wind handle with grip has smooth, ergonomic design for easy handling
ACCESSORIES
Flange bushing

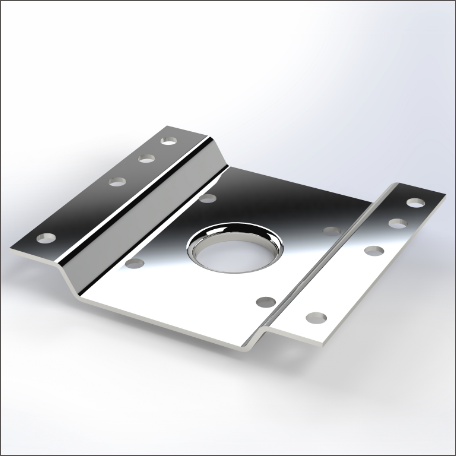

Flaring plate
Handle hook

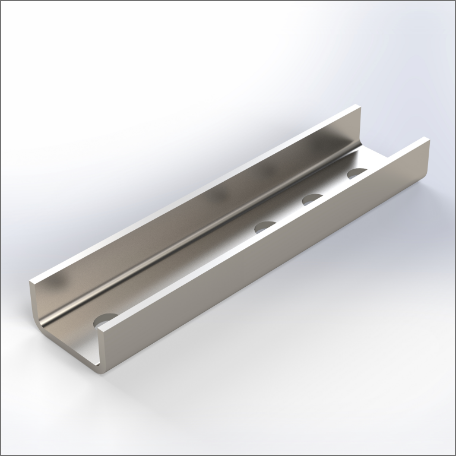

Mounting plate

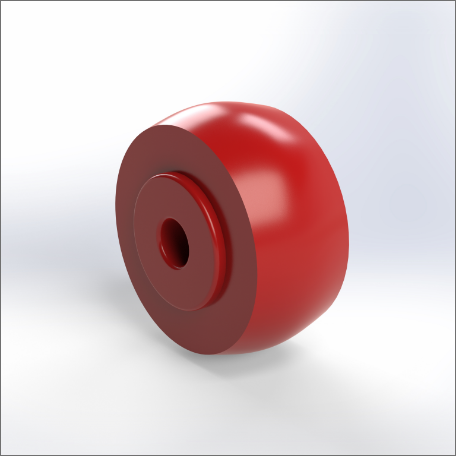

Roller
Thrust ball bearing

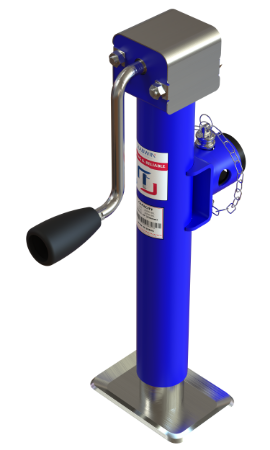

Jack SM 908 High lift
RSSWF210A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Side wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 3,000 LBS. |
| Lift Capacity | 2,000 LBS. |
| Lift | 10 IN. |
| Retracted Height | 10.8 IN. |
| Extended Height | 20.8 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 908 High lift RSSWF210A is designed to provide high lift of 10 inch, making it easy to attach and detach trailers from your vehicle.
3000lb load capacity: This trailer jack is designed to support a maximum load of 3000 lbs, making it ideal for heavy- duty applications.
Powder Coating: The trailer jack features an outer tube with blue colour powder coating and inner tube with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 908 High lift RSSWF210A is made with highquality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior side-load capacity.
Outer and inner pipe overlap for additional strength when jack is fully extended.
Side wind handle with grip has smooth, ergonomic design for easy handling
ACCESSORIES
Flange bushing
Handle coupling
Jack pin assembly
Thrust ball bearing
Top wind handle rod assembly
Jack SM 1360 High lift
SSSWF310A ISO RETRACTED
| Additional information | |
|---|---|
| Winding Type | Side wind |
| Mounting Type | Weld-on |
| Mounting Position | Side mount |
| Static Capacity | 5,000 LBS. |
| Lift Capacity | 3,000 LBS. |
| Lift | 10.5 IN. |
| Retracted Height | 10.3 IN. |
| Extended Height | 20.8 IN. |
| Foot Type | Foot Plate |
Features & Benefits
Jack SM 1360 High Lift SSSWF310A is designed to provide high lift of 10.5 inch, making it easy to attach and detach trailers from your vehicle.
5000lb load capacity: This trailer jack is designed to support a maximum load of 5000 lbs, making it ideal for heavy- duty applications.
Powder Coating: The trailer jack features an outer tube with blue colour powder coating and inner tube with silver powder coating, which not only looks stylish but also provides high corrosion resistance even in harsh environment.
Durable construction: The RABWN Trailer Jack SM 1360 High Lift SSSWF310A is made with high-quality materials to ensure long-lasting use, even in harsh conditions.
Compatible with various types of trailer vehicles: This trailer jack is compatible with different types of trailer vehicles, making it a versatile option for your trailer needs.
Foot Plate: It is designed for even load distribution and the large area provides high stability and high safety.
Superior side-load capacity compared with round jacks.
Outer and inner tubes overlap for additional strength when jack is fully extended.
Square design provides additional support for side loading.
Side wind handle with grip has smooth, ergonomic design for easy handling
ACCESSORIES
Flange bushing
Handle coupling
Jack pin assembly
Roller
Thrust ball bearing
